Renault Zoe / Smart Fortwo (W453) 2016-2019 / Keramiklager-Kit für Rotor der Antriebseinheit
2-Photoroom

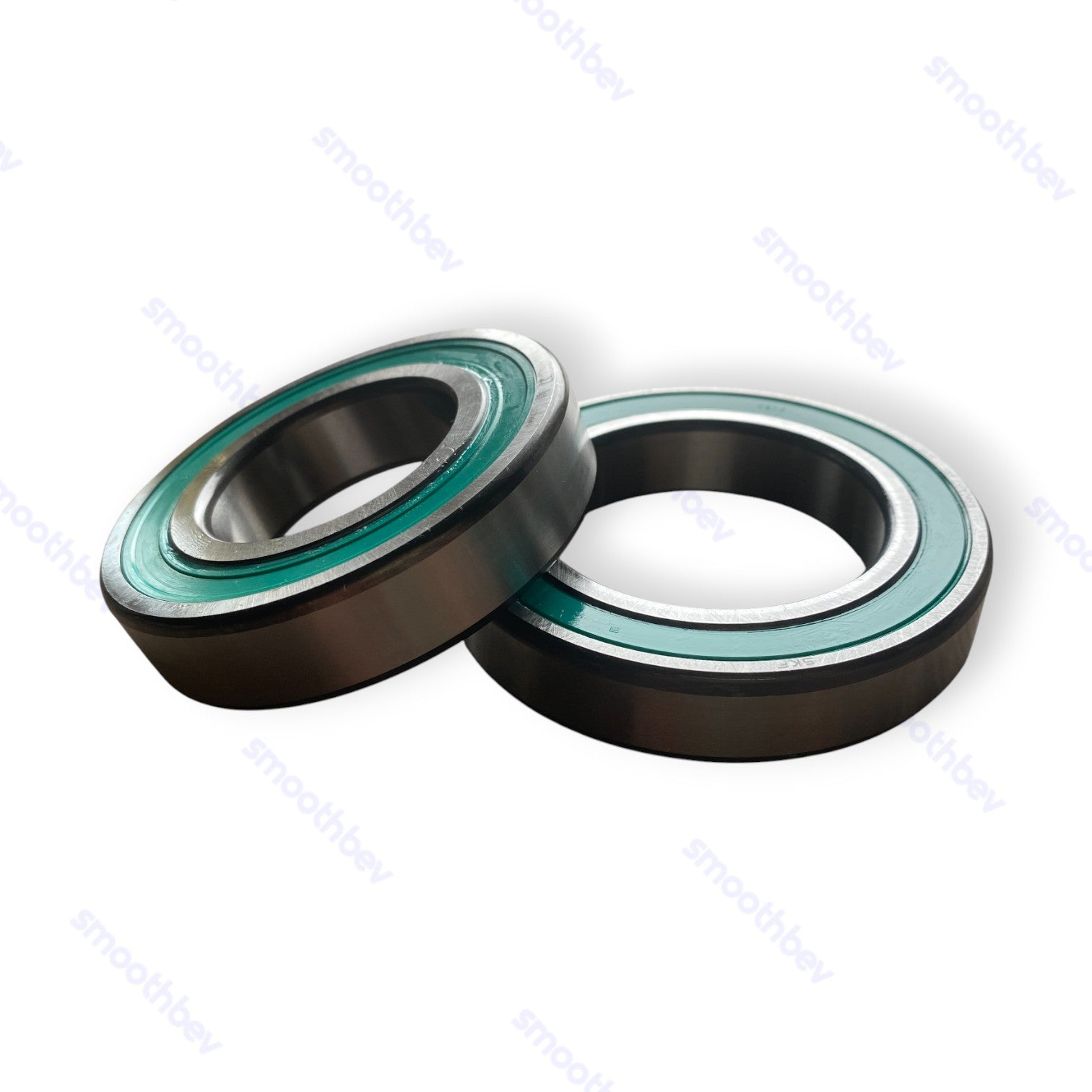

Keramiklager-Kit für Rotor der Antriebseinheit

Angebotspreis  €199,00 Normaler Preis  €249,00
Zu Produktinformationen springen
2-Photoroom
1/2

Keramiklager-Kit für Rotor der Antriebseinheit

✓ Renault Zoe (ZE40) 2017-2019
✓ Renault Zoe (ZE50) 2019-2024
✓ Smart Fortwo (W453) 2017-2024
Angebotspreis  €199,00 Normaler Preis  €249,00

MwSt. enthalten

Auf Lager — Verpackt und innerhalb von 48 Std. versendet
SKU: ROTOR-ZOE-CER

Versicherter FedEx-Versand

Die Versandkosten werden vor der Zahlung angezeigt

100 % Passgarantie oder kostenloser Austausch

Kostenlose Kompatibilitätsprüfung per VIN anfragen.

Qualitätsversprechen

Original- und OEM-Teile, getestet und von geprüften Lieferanten bezogen.

Experten-Support per Chat oder E-Mail

Technischer Spezialist unterstützt Sie vor und nach dem Kauf.

Sichere und geschützte Zahlungen

These hybrid ceramic single row deep groove ball bearings feature seals on both sides, bearing steel rings, and bearing-grade silicon nitride rolling elements, making them electrically insulating.

NOTE! Those bearings are without grooves (this can be fixed using bearing glue).

The integral sealing keeps lubricant inside and prevents contaminants from entering, significantly prolonging bearing service life.

The ceramic rolling elements provide protection from electric current damage and, compared to same-sized steel bearings, offer:

  • Enhanced bearing performance

  • Extended service life

  • Higher speed capability

  • High wear resistance

  • Increased bearing stiffness

  • Reduced risk of smearing and false brinelling

  • Lower sensitivity to temperature gradients

These features make the bearings especially suited for use in difficult conditions and contaminated environments, while retaining the typical benefits of single row deep groove ball bearings.

Key Advantages:

  • Protected against electric current damage

  • Integral sealing prolongs bearing service life

  • Reliable in harsh or contaminated environments

⚠️ Sicherheitshinweis

  • Beachten Sie stets die Hochspannungssicherheitsprotokolle
  • Verwenden Sie isolierte Werkzeuge
  • Befolgen Sie alle hersteller- und EV-spezifischen Richtlinien bei der Wartung elektrischer Komponenten

Weitere Details

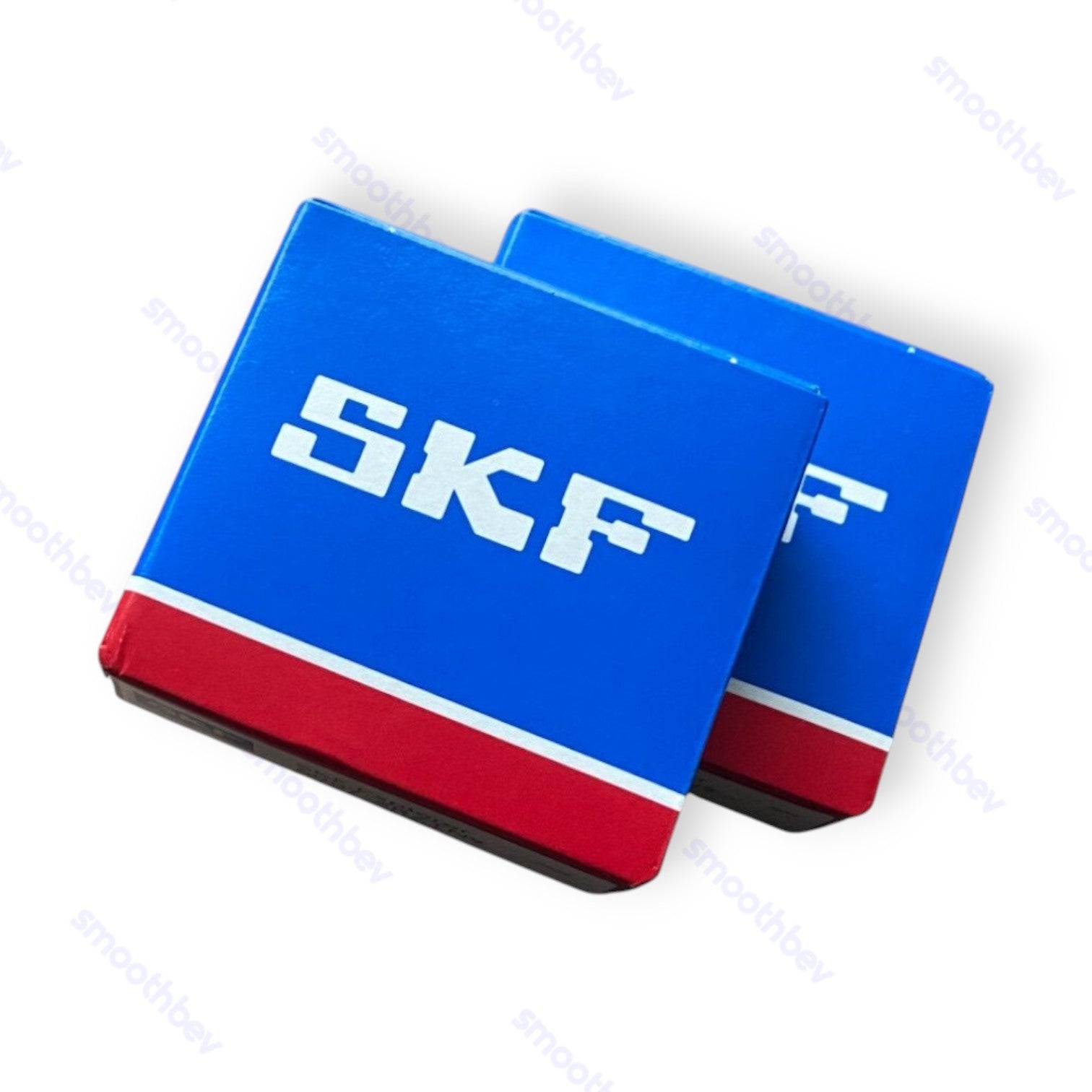

Hersteller: SKF

Material: Keramik

OE-Teilenummern:

  • 5AQ
  • 5AQ-601
  • 5AQ-605
  • 5AQ-607

Details:

Without grooves (can be fixed using bearing glue)

Kg: 0.4

Verpackung in cm: 22 x 11 x 7 (L x W x H)

Kompatibilität per VIN prüfen

Um die korrekte Kompatibilität sicherzustellen, senden Sie bitte Ihre VIN per Chat, E-Mail oder zusammen mit Ihrer Bestellung. Wir bestätigen die Kompatibilität vor dem Versand.

Im Chat fragen
Per E-Mail fragen
